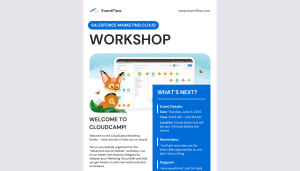

EVENT REGISTRATION CLOUDPAGE

EventFlow

Navigate To:

Description

An event registration CloudPage for ‘EventFlow’ built in Salesforce Marketing Cloud using SSJS, AMPscript, HTML, and CSS, which utilizes the REST API to trigger a Welcome Journey upon successful form submission.

Scenario

You are working with an event management company that organizes workshops.

They want to set up an event registration CloudPage where users can sign up for an upcoming workshop.

Requirements

-The user’s information should be stored in a data extension named EventRegistrationDE

-The user should be enrolled in a confirmation journey, which sends a welcome email and further event details

-Log successful registrations and any errors encountered during the process in a data extension named EventRegistrationLog

-Customers can register for one event only

-The CloudPage should expire after the event date, preventing any further registrations

SSJS & AMPscript Features:

-Conditional Logic

-Data Extension Operations

-Encryption & Decryption

-API Calls

-JSON Processing

-Error Handling

-Logging & Debugging

Studios/Builders:

-Email Studio

-Content Builder

-Contact Builder

-Web Studio

-Journey Builder

Project Walkthrough:

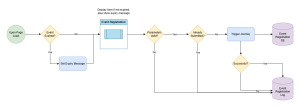

Step 1: Created a Data Flow Diagram to visualize entire development process

Step 2: Created two data extensions: EventRegistrationDE (used to trigger the Welcome Journey) and EventRegistrationLog (used to capture successful registrations and error logs) in Email Studio

Step 3: Created 2 Symmetric Keys and 1 Salt Key in Marketing Cloud Setup > Key Management

Populated Pre-Shared Key and Salt values by generating a random 16-digit hex code using an online Hex Number Generator

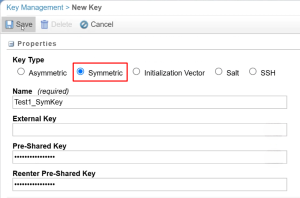

Symmetric Key #1:

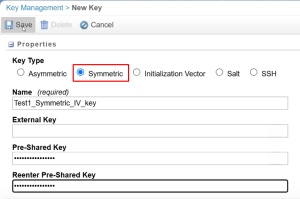

Symmetric Key #2:

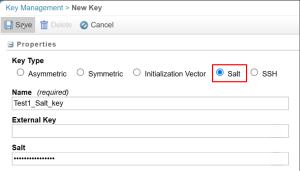

Salt Key:

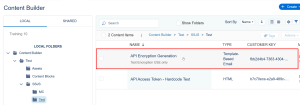

Step 4: Created “API Encryption Generation” Email in Content Builder

Code:

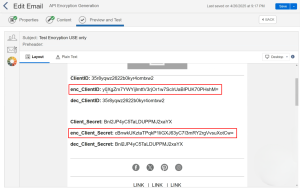

Step 5: Previewed email by clicking on “Preview and Test” tab

*Email is used to generate the encrypted Client ID and Client Secret, and confirm that the original and decrypted values are both the same*

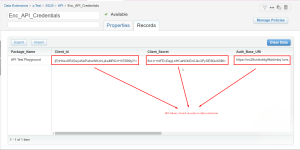

Step 6: Created Enc_API_Credentials data extension and added API values manually through Contact Builder

*Had to create new API integration containing new Client ID and Client Secret so the values within the DE differ*

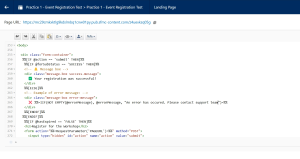

Step 7: Developed the CloudPage using SSJS, AMPscript, HTML, and CSS

Code:

Step 8: Built the journey and set the appropriate settings in Journey Builder

*This journey is solely for testing purposes, whereas a real-world scenario would also include the sending of a Welcome Email for this use case*

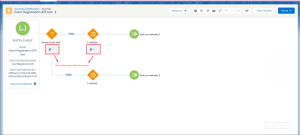

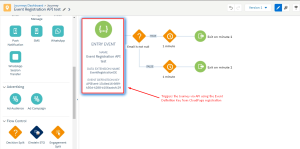

Journey:

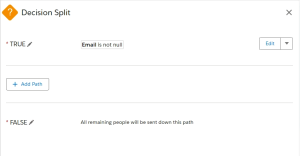

Decision Split:

Journey Data is used in the decision split to route contacts based on their entry-time data, even if the source data changes later

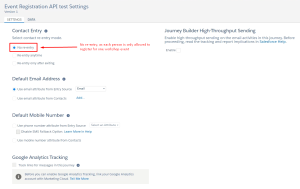

Journey Settings:

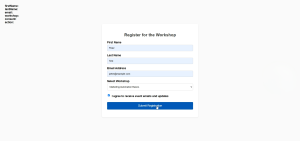

Step 9: Fill out information in form and click “Submit Registration”

Step 10: View registration message and inputted data in top left corner (solely for testing purposes)

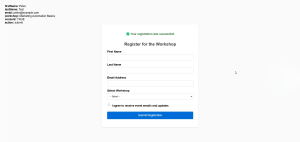

Successful Registration Example:

Failed Registration Example:

Due to having already submitted, invalid API token, journey failed to trigger, missing parameters, etc.

Step 11: For successful registrations, confirmed API Event has triggered and contact is injected into Journey

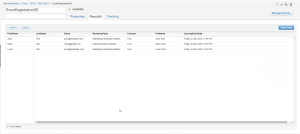

Step 12: Confirmed that the user’s information has been successfully stored in the data extension EventRegistrationDE

*Screenshot was taken before Peter was submitted, so he doesn’t appear in DE yet, but you can see the other records populate*

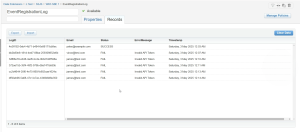

Step 13: Confirmed logging of successful registrations and any errors encountered during the process in the data extension EventRegistrationLog
